The Ultimate Audio Technica Headphone Model & Troubleshooting Guide
Founded in Tokyo in 1962 by Hideo Matsushita, Audio Technica built its worldwide reputation on high precision phono cartridges, renowned broadcast microphones, and reference monitoring hardware. In the headphone space, the Japanese manufacturer has become an industry benchmark across commercial recording studios, broadcast booths, content creation suites, and audiophile setups.
Whilst Audio Technica designs everything from luxury wooden audiophile flagships to open back reference cans and gaming headsets, their closed back M Series studio monitors represent one of the best selling headphone lineups in audio history. However, the demands of long tracking sessions, studio handling, DJ gig bags, and daily commuting expose these headsets to predictable wear over time.
Anatomy of a Headset: What Are Your Audio Technicas Made Of?
When a part fails on your Audio Technica headset, you rarely need to discard the entire unit. The modular design of the M Series makes most external parts straightforward to service:
Ear Pads / Cushions: High density foam rings covered in soft synthetic protein leather. These pads create the critical airtight seal needed to deliver punchy sub bass and isolate outside studio bleed.
Headband Arch & Cushion: The steel reinforced inner band wrapped in leatherette padding, providing the clamping force required for a secure seal over your ears.
Gimbal & 90 Degree Swivel Arms: The durable plastic yokes and rotation joints that allow the earcups to swivel 90 degrees flat or collapse inward toward the headband arch for compact travel.
Detachable 2.5mm Twist Lock Cable Jack (M40x / M50x / M70x): A proprietary bayonet locking socket housed in the base of the left earcup preventing accidental cable pulls.
Internal Hinge Audio Wire: The copper lead running through the extension arms and headband arch that carries audio to the right side driver.
Neodymium Drivers: High performance 40mm to 45mm dynamic transducers tuned for flat, honest acoustic reproduction across 5 Hz to 40,000 Hz depending on the model.

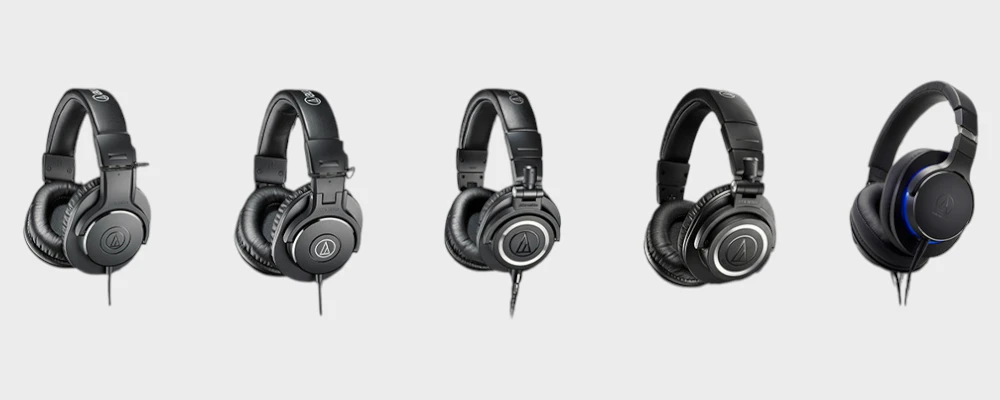

Audio-Technica Headphones Model Comparison Matrix
| Model | Classification | Acoustic Character & Hardware Features | Cable Setup | Replacement Ear Pads |
|---|---|---|---|---|
| ATH M70x | Flagship Studio Monitor | Ultra flat frequency curve, aluminium yokes, and extended high frequency response for critical mastering. | Detachable (Coiled & Straight) | Shop M70x Pads → |
| ATH M50x / M50xBT2 | Industry Benchmark | 45mm large aperture drivers, deep bass response, and full 90 degree swivelling earcups for single ear DJ monitoring. | Detachable Locking / Bluetooth | Shop M50x Pads → |
| ATH M40x | Flat Response Studio Monitor | 40mm drivers with exceptionally neutral tuning across the entire frequency band, favoured for accurate mixing. | Detachable Locking | Shop M40x Pads → |
| ATH M30x | Field & Tracking Monitor | 40mm drivers tuned for enhanced midrange detail with a collapsible folding frame for location recording. | Fixed 3.0m Cable | Shop M30x Pads → |
| ATH M20x / M20xBT | Entry Level Tracking | 40mm tuned drivers optimised for low end punch and tracking, with a lightweight frame and 15 degree earcup pivot. | Fixed 3.0m Cable / Bluetooth | Shop M20x Pads → |
| ATH R70x | Flagship Open Back Reference | Honeycomb open mesh housings, high impedance 470 ohm drivers, and 3D Wing Support for spatial mixing. | Detachable Dual Sided Locking | Specialist Velour Fit |
| ATH GDL3 / GL3 | Gaming & Streaming Headset | Ultra lightweight design with 45mm dynamic drivers and a studio grade detachable boom microphone. | Detachable 3.5mm TRRS | Specialist Mesh Fit |
Quick Diagnostics: DIY Part Swap or Workshop Repair?
Use this symptom checker to identify common Audio Technica faults and determine the quickest route to fixing them:
Flat, Flaking, or Hardened Leather Cushions
The Diagnostic: The synthetic leather outer lining splits along the seams, flakes off black particles onto your ears, or the foam becomes stiff and flat. Over time, sweat and skin oils strip the plasticisers out of the factory protein leather, compromising both acoustic bass seal and physical comfort.
The Severity: Low (Easy 5 Minute DIY Fix).
The Solution: Swap them at home. Our replacement ear cushions use a flexible rear mounting lip that stretches directly into the perimeter rim groove of your earcup in minutes.
Audio Cuts Out in One Ear (or Crackles When Adjusting the Headband)
The Diagnostic: The right earcup goes silent, or audio crackles when extending the slider or folding the headset. Repetitive 90 degree swivelling and collapsing puts tension on the fine internal audio wiring routed through the headband arch, eventually causing a fracture.
The Severity: High (Professional Repair Needed).
Intermittent Sound from the Cable Jack (M40x / M50x / M70x)
The Diagnostic: Sound drops out or loses low end frequencies unless you wiggle the 2.5mm input lead at the bottom of the left earcup. The internal locking mechanism pins can loosen over time from accidental tugs.
The Severity: Medium (Cable Swap or Socket Repair).
The Solution: First, test with an alternate twist lock cable. If the dropout persists with a brand new lead, send the headset to our workshop for an internal 2.5mm input socket replacement.
Loose or Drooping Earcup Swivel Joints
The Diagnostic: The earcups no longer hold their position firmly or feel floppy when lifted. The internal friction washers and pivot screws inside the gimbal arm have backed out or worn down from heavy studio use.
The Severity: Medium (DIY Tightening or Workshop Service).
